Splunk

Search and visualize compact events in Splunk with zero data loss. This open-source app transparently expands compact events at search time, maintaining full querying, dashboard, and alerting capabilities while reducing ingestion costs by over 50%.

Use the Cloud Reporter to identify optimization opportunities in your existing Splunk data.

View on GitHub

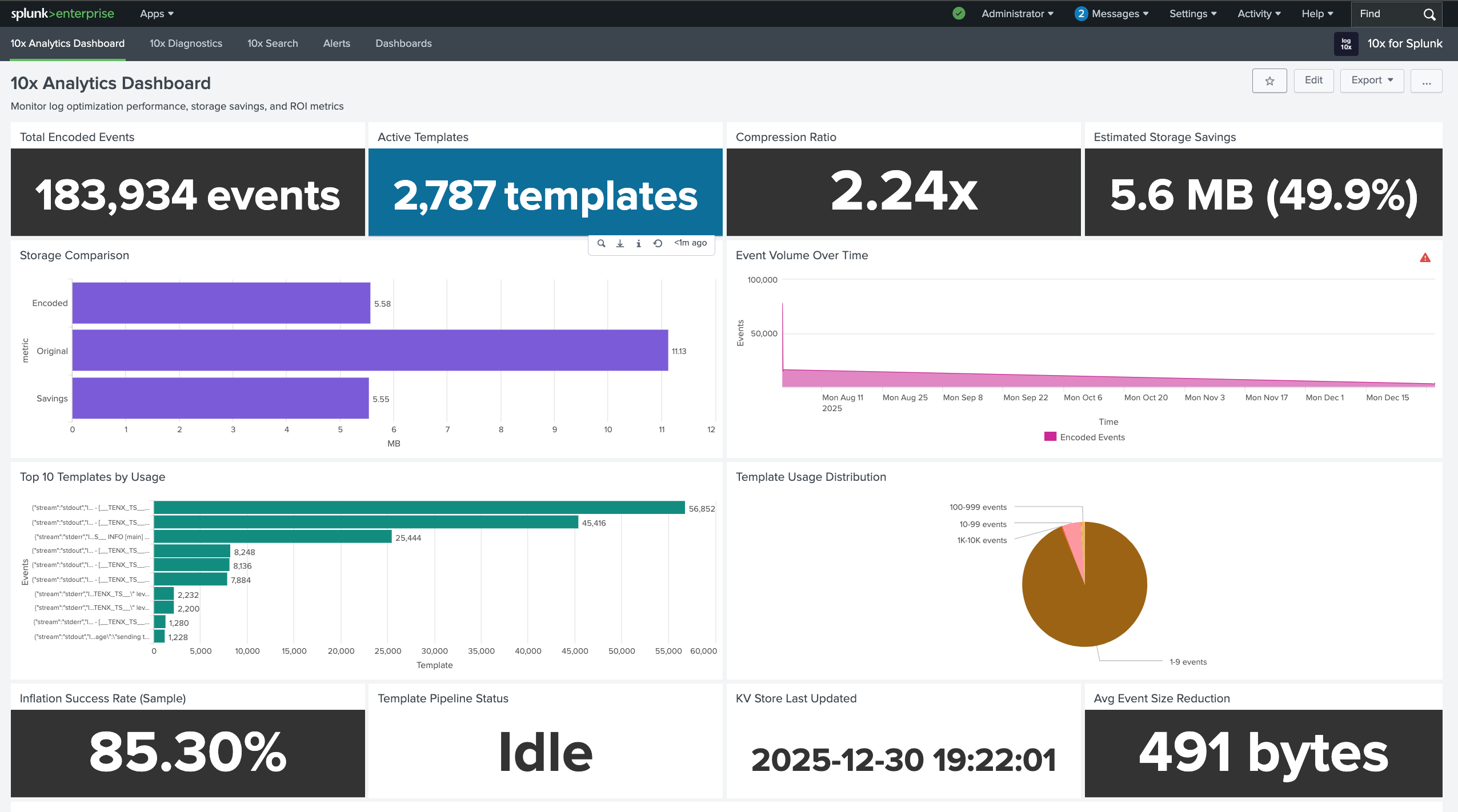

Analytics Dashboard

The app includes a built-in analytics dashboard providing real-time visibility into optimization performance, storage savings, and ROI metrics.

Metric	Description
Total Encoded Events	Count of optimized events ingested
Active Templates	Number of unique patterns in KV Store
Reduction Ratio	Average reduction factor across all events
Storage Savings	Estimated bytes saved and percentage reduction
Event Volume Over Time	Trend comparison of encoded vs original volume
Top Templates by Usage	Most frequently matched patterns
Expansion Success Rate	Percentage of events successfully expanded

How It Works

The app intercepts search requests and automatically expands compact events before displaying results. Users interact with Splunk exactly as before - searching, building dashboards, and configuring alerts on the original full-fidelity data.

Ingestion Flow

Events are compact at the edge and ingested into Splunk with reduced payload size:

graph LR
    A["<div style='font-size: 14px;'>🗜️ Optimizer</div><div style='font-size: 10px;'>Encode Events</div>"] --> B["<div style='font-size: 14px;'>📡 Ingest</div><div style='font-size: 10px;'>UF / HEC</div>"]
    B --> C["<div style='font-size: 14px;'>📋 KV Store</div><div style='font-size: 10px;'>Templates</div>"]
    B --> D["<div style='font-size: 14px;'>💾 Index</div><div style='font-size: 10px;'>Encoded</div>"]

    classDef edge fill:#7c3aed88,stroke:#6d28d9,color:#ffffff,stroke-width:2px,rx:8,ry:8
    classDef ingest fill:#9333ea88,stroke:#7c3aed,color:#ffffff,stroke-width:2px,rx:8,ry:8
    classDef store fill:#2563eb88,stroke:#1d4ed8,color:#ffffff,stroke-width:2px,rx:8,ry:8

    class A edge
    class B ingest
    class C,D store

🗜️ Optimizer: Edge Optimizer encodes events, extracting repetitive patterns into templates

📡 Ingest: Encoded events forwarded to Splunk via Universal Forwarder or HEC with reduced payload size

📋 KV Store: Templates stored in tenx_dml collection for lookup at search time

💾 Index: Compact events stored with template hash references

Search Flow

Searches are transparently transformed to expand compact events:

graph LR
    E["<div style='font-size: 14px;'>👤 User</div><div style='font-size: 10px;'>Search</div>"] --> F["<div style='font-size: 14px;'>🪝 Hook</div><div style='font-size: 10px;'>Intercept</div>"]
    F --> G["<div style='font-size: 14px;'>🔄 Transform</div><div style='font-size: 10px;'>Add Macro</div>"]
    G --> H["<div style='font-size: 14px;'>📖 Expand</div><div style='font-size: 10px;'>Expand</div>"]
    H --> I["<div style='font-size: 14px;'>📊 Results</div><div style='font-size: 10px;'>Full Data</div>"]

    classDef user fill:#059669,stroke:#047857,color:#ffffff,stroke-width:2px,rx:8,ry:8
    classDef hook fill:#f59e0b,stroke:#d97706,color:#ffffff,stroke-width:2px,rx:8,ry:8
    classDef result fill:#ea580c88,stroke:#c2410c,color:#ffffff,stroke-width:2px,rx:8,ry:8

    class E user
    class F,G hook
    class H,I result

👤 User: Submits search query through Splunk UI or API

🪝 Hook: JavaScript dashboard.js intercepts /search/jobs requests via $.ajaxSetup

🔄 Transform: REST handler transforms SPL to include tenx-inflate macro

📖 Expand: Macro joins compact events with templates from KV Store

📊 Results: Full-fidelity events returned with original field names and values

Quickstart

Get encoded events flowing to Splunk in under 15 minutes.

Step 1: Install Splunk App

Clone the repository and install to your Splunk apps directory:

git clone https://github.com/log-10x/splunk-app.git
cp -r splunk-app/tenx-for-splunk $SPLUNK_HOME/etc/apps/
$SPLUNK_HOME/bin/splunk restart

Prerequisites:

Requirement	Description
Splunk Enterprise	Version 8.0 or later
Admin Access	Required for app installation and KV Store setup

Verify Installation

After restart, confirm the app appears in Splunk:

Navigate to Apps → Manage Apps
Search for "10x" - you should see 10x for Splunk
Click the app name to open the Analytics dashboard

Step 2: Create HEC Tokens

Create two HTTP Event Collector tokens in Splunk - one for templates, one for encoded events.

Navigate to HEC Settings:

Go to Settings → Data inputs → HTTP Event Collector
Click Global Settings and ensure HEC is Enabled
Note the HTTP Port Number (default: 8088)

Create Templates Token:

Setting	Value
Name	`tenx-templates`
Source type	`tenx_dml_raw_json`
Index	`tenx_dml`
Enable indexer acknowledgement	Off

Create Encoded Events Token:

Setting	Value
Name	`tenx-encoded`
Source type	Select appropriate for your logs
Index	Your target index
Enable indexer acknowledgement	Off

Create Index First

If tenx_dml index doesn't exist, create it via Settings → Indexes → New Index before creating the token.

Step 3: Configure Forwarder

Configure your log forwarder to send encoded events and templates to Splunk.

Fluent Bit Fluentd OTel Collector

Include 10x optimizer configuration:

fluent-bit.conf

# Include 10x optimizer and socket configurations
@INCLUDE ${TENX_MODULES}/pipelines/run/modules/input/forwarder/fluentbit/conf/tenx-optimize.conf
@INCLUDE ${TENX_MODULES}/pipelines/run/modules/input/forwarder/fluentbit/conf/tenx-unix.conf

Configure Splunk outputs:

fluent-bit.conf

# ========================= TEMPLATES OUTPUT =========================
# Routes templates to tenx_dml index for KV store population
[OUTPUT]
    Name              splunk
    Match             tenx-template
    Host              your-splunk-host.com
    Port              8088
    Splunk_Token      YOUR_TEMPLATES_HEC_TOKEN
    event_index       tenx_dml
    event_source      fluent-bit-tenx
    event_sourcetype  tenx_dml_raw_json
    TLS               On
    TLS.Verify        Off

# ========================= ENCODED EVENTS OUTPUT ====================
# Routes encoded log events to your target index
# CRITICAL: Use 'event_key $log' to prevent JSON wrapping
[OUTPUT]
    Name              splunk
    Match_Regex       ^(?!tenx-template).*
    Host              your-splunk-host.com
    Port              8088
    Splunk_Token      YOUR_ENCODED_EVENTS_HEC_TOKEN
    event_index       your_logs_index
    event_sourcetype  your_sourcetype
    event_key         $log
    TLS               On
    TLS.Verify        Off

Critical: event_key $log

Without event_key $log, Fluent Bit wraps events in JSON: {"log":"~hash,var1,var2..."}. The Splunk app cannot expand this format. Always use event_key $log for encoded events output.

Prerequisites:

Install the Splunk HEC output plugin:

gem install fluent-plugin-splunk-hec

Include 10x optimizer configuration:

fluentd.conf

# Include the 10x optimizer exec_filter configuration
# This launches tenx as a subprocess and handles event encoding
@include "#{ENV['TENX_MODULES']}/pipelines/run/modules/input/forwarder/fluentd/conf/tenx-optimize-unix.conf"

Configure Splunk outputs:

fluentd.conf

# ========================= TEMPLATES OUTPUT =========================
# Routes templates to tenx_dml index for KV store population
<match tenx-template>
  @type splunk_hec
  host your-splunk-host.com
  port 8088
  token YOUR_TEMPLATES_HEC_TOKEN
  index tenx_dml
  sourcetype tenx_dml_raw_json
  use_ssl true
  ssl_verify false
</match>

# ========================= ENCODED EVENTS OUTPUT ====================
# Routes encoded log events to your target index
# IMPORTANT: Use 'format single_value' with 'message_key log' to send
# only the encoded log content, not the full JSON record
<match **>
  @type splunk_hec
  host your-splunk-host.com
  port 8088
  token YOUR_ENCODED_EVENTS_HEC_TOKEN
  index your_logs_index
  sourcetype your_sourcetype
  use_ssl true
  ssl_verify false
  <format>
    @type single_value
    message_key log
  </format>
</match>

Critical: format single_value

Without the <format> block, Fluentd wraps events in JSON: {"log":"~hash,var1,var2...","tag":"..."}. The Splunk app cannot expand this format. Use format single_value with message_key log to send only the encoded log content.

Configure exporters in your OTel config:

otel-collector.yaml

exporters:
  # Templates exporter
  splunk_hec/templates:
    endpoint: "https://your-splunk-host.com:8088/services/collector"
    token: "YOUR_TEMPLATES_HEC_TOKEN"
    index: "tenx_dml"
    sourcetype: "tenx_dml_raw_json"
    tls:
      insecure_skip_verify: true

  # Encoded events exporter
  splunk_hec/encoded:
    endpoint: "https://your-splunk-host.com:8088/services/collector"
    token: "YOUR_ENCODED_EVENTS_HEC_TOKEN"
    index: "your_logs_index"
    sourcetype: "your_sourcetype"
    tls:
      insecure_skip_verify: true

service:
  pipelines:
    logs/templates:
      receivers: [tenx_templates]
      exporters: [splunk_hec/templates]
    logs/encoded:
      receivers: [tenx_encoded]
      exporters: [splunk_hec/encoded]

Step 4: Verify End-to-End

Run these SPL queries to confirm everything is working:

1. Check templates are arriving:

index=tenx_dml sourcetype=tenx_dml_raw_json | head 10

Expected: JSON events with templateHash and template fields

2. Check KV store is populated:

| inputlookup tenx-dml-lookup | stats count

Expected: Count > 0 (may take up to 2 minutes for first templates)

3. Check compact events expand:

index=your_logs_index | head 10

Expected: Full expanded events, not ~hash,var1,var2... format

First Templates Take Time

The "Consume KV" saved search runs every 2 minutes. If KV store is empty, wait 2-3 minutes and check again.

Step 5: Enable Expansion in Search & Reporting (Optional)

The verification queries in Step 4 run from within the 10x for Splunk app, where the search hook is already active. If you also want to search encoded events from Splunk's default Search & Reporting app, copy the search hook:

cp $SPLUNK_HOME/etc/apps/tenx-for-splunk/appserver/static/dashboard.js \
   $SPLUNK_HOME/etc/apps/search/appserver/static/

After copying, bump Splunk's static file cache or restart:

$SPLUNK_HOME/bin/splunk restart

Now searches in the default Search app will also expand events automatically.

Only needed if you use the default Search app

If you only use the 10x for Splunk dashboards or custom apps where you've already added the hook, you can skip this step.

Verification Checklist

Use this checklist to diagnose issues at each stage of the pipeline.

Templates Arriving in Splunk?

Test Query:

index=tenx_dml sourcetype=tenx_dml_raw_json earliest=-1h | stats count

Result	Meaning	Action
Count > 0	Templates arriving	Proceed to KV store check
Count = 0	No templates received	Check forwarder config, HEC token, network connectivity

Check raw event format:

index=tenx_dml sourcetype=tenx_dml_raw_json | head 1

Expected format:

{"templateHash":"#ABC123xy","template":"INFO $0 - User $1 logged in from $2"}

KV Store Populated?

Test Query:

| inputlookup tenx-dml-lookup | stats count

Result	Meaning	Action
Count > 0	KV store populated	Proceed to expansion check
Count = 0	Templates not processed	Check "Consume KV" saved search

Verify saved search configuration:

Go to Settings → Searches, reports, and alerts
Find "Consume KV" in the 10x for Splunk app
Verify search string includes: index=tenx_dml sourcetype=tenx_dml_raw_json
Click Run to manually trigger

Events Expanding Correctly?

Test Query:

index=your_logs_index | head 5

Result	Meaning	Action
Full expanded events	Working correctly	Done!
`~hash,var1,var2...` format	Events not expanding	Check hash exists in KV store
`{"log":"~hash,..."}`	JSON wrapping	Add `event_key $log` to forwarder

Check if template hash exists:

| inputlookup tenx-dml-lookup | search pattern_hash="YOUR_HASH_FROM_EVENT"

Troubleshooting

Templates Not Populating KV Store

Symptom: | inputlookup tenx-dml-lookup returns 0 rows even though templates exist in tenx_dml index.

Common Causes:

Cause	Solution
Missing `index=` in saved search	Edit "Consume KV" search to include `index=tenx_dml`
Time window too narrow	Increase `dispatch.earliest_time` from `-3m` to `-1h` or `-1d`
Special characters in hash	Upgrade Splunk app - URL encoding fix required
Saved search disabled	Enable in Settings → Searches → "Consume KV"

Fix saved search manually:

Edit $SPLUNK_HOME/etc/apps/tenx-for-splunk/local/savedsearches.conf:

[Consume KV]
search = index=tenx_dml sourcetype=tenx_dml_raw_json
dispatch.earliest_time = -1d

Restart Splunk or run the search manually to apply.

Events Show Raw Encoded Format

Symptom: Events display as ~#ABC123,value1,value2,value3 instead of expanded JSON/text.

Common Causes:

Cause	Solution
Template hash not in KV store	Wait 2 min for "Consume KV" to run, or trigger manually
Hash mismatch (different data)	Verify encoded events match templates in `tenx_dml`
Search hook not active	Ensure `dashboard.js` is loaded for your app/view

Debug hash lookup:

index=your_logs_index
| rex field=_raw "~(?<hash>[^,]+)"
| lookup tenx-dml-lookup pattern_hash as hash OUTPUT pattern
| table _time hash pattern

Events Wrapped in JSON

Symptom: Events arrive as {"log":"~hash,var1,var2..."} instead of raw encoded format.

Fluent Bit Fluentd

Cause: Missing event_key $log in Splunk output configuration.

Solution: Add event_key $log to your encoded events OUTPUT section:

[OUTPUT]
    Name              splunk
    Match_Regex       ^(?!tenx-template).*
    Host              your-splunk-host.com
    Port              8088
    Splunk_Token      YOUR_TOKEN
    event_index       your_index
    event_key         $log
    TLS               On

This tells Fluent Bit to send only the log field content, not wrap it in JSON.

Cause: Missing <format> block in Splunk HEC output configuration.

Solution: Add format single_value with message_key log to your encoded events match:

<match **>
  @type splunk_hec
  host your-splunk-host.com
  port 8088
  token YOUR_TOKEN
  index your_index
  sourcetype your_sourcetype
  <format>
    @type single_value
    message_key log
  </format>
</match>

This tells Fluentd to send only the log field content, not the full JSON record.

HEC Connection Refused or Timeout

Symptom: Forwarder logs show connection errors to Splunk HEC.

Diagnostic Steps:

Test HEC endpoint:

curl -k https://your-splunk:8088/services/collector/health

Expected: {"text":"HEC is healthy","code":17}

Test with token:

curl -k https://your-splunk:8088/services/collector \
  -H "Authorization: Splunk YOUR_TOKEN" \
  -d '{"event":"test"}'

Expected: {"text":"Success","code":0}

Error	Cause	Solution
Connection refused	HEC disabled	Enable in Settings → Data inputs → HTTP Event Collector → Global Settings
401 Unauthorized	Invalid token	Verify token value, check token is enabled
403 Forbidden	Token restrictions	Check token's allowed indexes and sourcetypes
SSL error	Certificate issues	Set `TLS.Verify Off` (dev) or configure proper certs (prod)

Enabling Expansion in Other Splunk Apps

The 10x for Splunk app expands events automatically within its own views. To enable expansion in other Splunk apps, copy the search hook to each app that needs it.

For the default Search & Reporting app, see Step 5 in the Quickstart.

For custom or third-party apps:

cp $SPLUNK_HOME/etc/apps/tenx-for-splunk/appserver/static/dashboard.js \
   $SPLUNK_HOME/etc/apps/YOUR_APP/appserver/static/

Restart Splunk after copying to apply.

Programmatic Hook for Custom Views

For custom dashboards, you can include the hook in JavaScript:

require([
    "/static/app/tenx-for-splunk/javascript/search/tenx_search_hook.js"
], function(TenxSearchHook) {
    TenxSearchHook.execute(true);
});

Components

Component	Description
Search Hook	JavaScript module intercepting all search requests
Search Handler	REST endpoint transforming SPL queries
KV Store	Template patterns for event expansion
Inflate Macro	SPL macro joining events with templates
Consume KV Search	Scheduled search populating KV store from templates
Analytics Dashboard	Encoding metrics and ROI visualization
Diagnostics Dashboard	Troubleshooting and verification tools

This app is open source. View on GitHub.

Next: Elasticsearch
